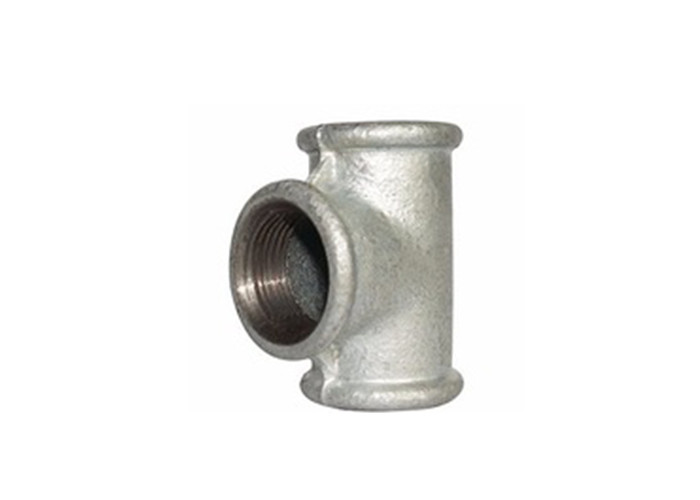

Class 150 Galvanized Malleable Iron Reducing Tee Fitting for Water Supply

Name: Class 150 Galvanized Malleable Iron Reducing Tee Fitting for Water Supply
Brand: leyon
Price: 1 USD

China Class 150 Galvanized Malleable Iron Reducing Tee Fitting for Water Supply wholesale

Brand Name : leyon

Model Number : Malleable Iron Pipes Fitting Tees Plain Equal 90 Degree

Certification : FM/UL

Place of Origin : China

MOQ : 100piece

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, D/P, D/A, MoneyGram

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

Treaded : ISO7/1, DIN2999,NPT

Connection : Female

Standard : 3/8X1/4 inch Malleable Iron Pipes Fitting Tees Plain Equal 90 Degree

Surface treatment : Hot dipped galvanized and cold galvanized

Size : 3/8X1/4 inch

Material : Iron

Contact Now

Size	Inch	3x8x1/2x3/8	1/2x3/4x1/2	1/2x1x1/2	3/4x1x3/4	1x11/4x1
Size	mm	10x15x10	15x20x15	15x25x15	20x25x20	25x32x25
Dim. (mm)	A	26	31	34	36	42
Size	Inch	1x11/2x1	11/4x11/2x11/4	11/4x2x11/4	11/2x2x11/2
Size	mm	25x40x25	32x40x32	32x50x32	40x50x40
Dim. (mm)	A	46	48	54	55

Size	Inch	11/2x3/4	11/2x1	11/2x11/4	2x1/2	2x3/4
Size	mm	40x20	40x25	40x32	50x15	50x20
Dim. (mm)	A	38	42	46	38	40
Size	Inch	2x1	2x11/4	2x11/2	21/2x1/2	21/2x3/4
Size	mm	50x25	50x32	50x40	65x15	65x20
Dim. (mm)	A	44	48	52	46	49

China Supplier No.130 Malleable Iron Pipes Fitting Tees Plain Equal 90 Degree

Size ranging from 1/8 inch to 8 inch.
Pipe fittingsGood toughness with long working life.
There is no any sand hole on surface of pipe fitting lateral tee.
y branch pipe fitting lateral tee’s average zinc coat thickness is higher than the data which is specified in ASME, EN, BS, DIN etc.
Our qualified are made by most advanced metallurgical technology high precision machining .

Significant list of Malleable Iron Pipes Fitting Tees

Material	Malleable iron
Standard	Thread: ISO 7/1
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded without ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

Brief summary of Malleable Iron Pipes Fitting Tees Plain Equal 90 Degree

Leyon is 30 years old , devote itself to offering solutions for global guests in tee connector transportation and storage field. Depend upon the collaborations with world top manufactures on high-end products application, Leyon could provide professional solutions for unique projects amid special construction place.

Main point of Malleable Iron Pipes Fitting Tees Plain Equal 90 Degree:

Material: malleable iron
Technics: casing
Type: Malleable Iron Pipes Fitting Tees Plain Equal 90 Degree
Connection:male&female
size:1/8"-8"
Standard: ANSI, BS, DIN
Packing: wooden cases or as customers' demands
surfacetreatment:painting galvaized or as customers' demands

Class 150 Galvanized Malleable Iron Reducing Tee Fitting for Water Supply
