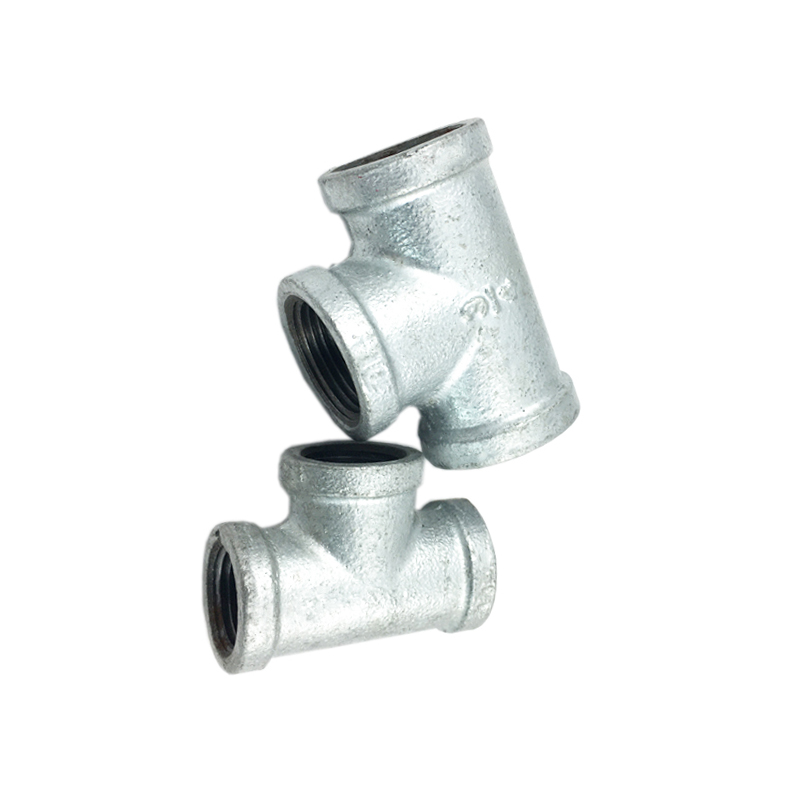

Building Hardware Galvanized Surface Malleable Iron Plumbing Equal Tee

Name: Building Hardware Galvanized Surface Malleable Iron Plumbing Equal Tee
Brand: leyon
Price: 1 USD

China Building Hardware Galvanized Surface Malleable Iron Plumbing Equal Tee wholesale

Brand Name : leyon

Model Number : Hot Galvanized Malleable Fittings Tees

Certification : FM/UL

Place of Origin : China

MOQ : 100piece

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, D/P, D/A, MoneyGram

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

Specification : Equal tee/Reducing Tee

Item : 1/8 inch Hot Galvanized Malleable Fittings Tees

Application : Steam, air, gas and oil pipes

Technics : sophisticated metallurgical

technology : advanced metallurgical and processing

Treaded : ISO7/1, DIN2999,NPT

Size : 1/8-6 inch

Dimensions : 19 mm

Contact Now

Building Hardware Galvanized Surface Malleable Iron Plumbing Equal Tee

Two major producing process of malleable cast iron

Rough casting:

Blast furnace smelting
Electric furnace adjustment
Sand Mixing or Core shooting core
Automatic modeling or Semi-automatic modeling
Casting
Broken box
Sorting code
Rough casting

During casting , we need to check the sample is made by molten iron , Spectral test and artificial test of the composition test . We will test the temperature after every pack of molten iron baked and before casting.

Surface processing:

Rough casting
Rough shot
Rough casting test
Annealing
Polished
Shaping
Flat
Fine shot
Cooked rough
Pickled
Hot galvanized
Hot galvanized Products

Material	Malleable iron
Standard	Thread: ISO 7/1
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded without ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

Also known as T-bend, three-prong, three-way, can connect three pipes with the same nominal diameter or pipe fittings with external threads Building Hardware Galvanized Surface Malleable Iron Plumbing Equal Tee
