LEYON'S information:
Leyon company is one of professional manufacturers and exporters of pipe fittings in China.

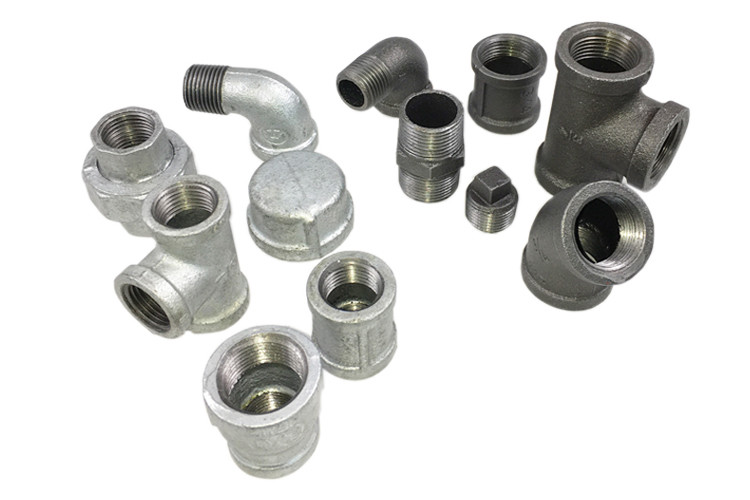

We are the well-know manufacturer in the fitting industry with the most compete range of products, supplying malleable iron fittings, grooved fittings, valves, cast iron fittings, ductile iron fittings, steel pipe nipplesand couplings, stainless steel pipe fittings,ect.
Production Processing for malleable pipe fittings
Through airtight test, the quality of every black malleable iron pipe fittings can be ensured.
Strict control of black malleable iron pipe fittings and the size of the thread, to ensure accuracy.
The standard size of black malleable iron pipe fittings is from 1/8” to 4”.
Good toughness ensure long using life for black malleable iron pipe fittings.
There is no any sand hole on surface of black malleable iron pipe fittings.
The Attribute definition list
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
Dim.
(mm) | A | 19 | 21 | 25 | 28 | 33 | 38 | 45 | 50 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | | |
Dim.
(mm) | A | 50 | 69 | 78 | 96 | 115 | 1301 | | |

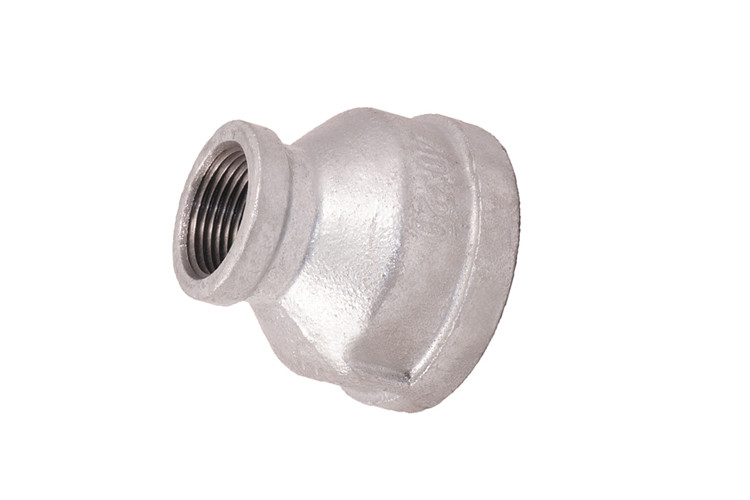

| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 |
Dim.
(mm) | A | 23 | 26 | 26 | 28 | 30 |
| | B | 23 | 26 | 26 | 28 | 31 |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 |
Dim.
(mm) | A | 32 | 35 | 34 | 36 | 40 |
| | B | 34 | 36 | 38 | 41 | 42 |
| Size | Inch | 11/2X1/2 | 11/2x3/4 | 11/2x1 | 11/2x11/4 | 2x1/2 |
| mm | 40X15 | 15X8 | 40X25 | 40X32 | 50X15 |
Dim.
(mm) | A | 36 | 39 | 42 | 46 | 38 |
| | B | 42 | 44 | 46 | 28 | 48 |
| Size | Inch | 2x3/4 | 2x1 | 2x11/4 | 2x11/2 | 21/2x1 |
| mm | 50X20 | 50X25 | 50X32 | 50X40 | 65x25 |
Dim.
(mm) | A | 40 | 44 | 56 | 52 | 56 |
| | B | 50 | 52 | 58 | 55 | 63 |
| Size | Inch | 21/2X11/2 | 3x21/2 | 21/2x2 | 3x11/2 |
| mm | 65X40 | 80X65 | 65X50 | 80X40 |
Dim.
(mm) | A | 64 | 82 | 61 | 58 |
| | B | 69 | 85 | 66 | 72 |
| Size | Inch | 3x2 | 4x21/2 | 4X3 | |
| mm | 80X50 | 100X65 | 100X80 | |
Dim.
(mm) | A | 73 | 78 | 84 | |
| | B | 78 | 90 | 92 | |
Material: iron
Technics: Casting
Type: galvanized cast iron pipe fittings
- Shape: Equal
- Usage: Jointing Pipe Lines
- Thread: ISO 7/1
- Standard: ANSI,BS,DIN,EN
- Surface treatment: Hot Dipped Galvanized
- Size: 1/8"~4"
- Type: galvanized cast iron pipe fittings
Product Tags:
|
|

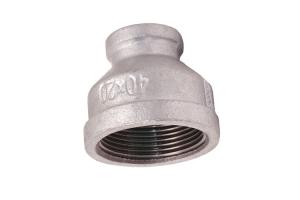

Gas Plumbing DIN 1/8" Malleable Iron Pipe Fittings Images
|
