3 inch en 10242 sanitary pipe fittings galvanized malleable iron pipe fittings
LEYON'S information:
We are the well-know manufacturer in the fitting industry with the most compete range of products, supplying malleable iron fittings, grooved fittings, valves, cast iron fittings, ductile iron fittings, steel pipe nipplesand couplings, stainless steel pipe fittings,ect.
Production Processing for malleable pipe fittings
Thread processed is exactly based on ASME EN BS DIN standard requirements,
so that make every thread of malleable pipe fittings can be matched easily.
Favorable tenacity,long service life for malleable pipe fittings
Smooth surface without any sand hole on malleable pipe fittings
zinc coating’s average thickness of malleable pipe fittings
is higher than 86 um, which is specified in ASME, EN(70um), DIN(70um) and SI(78um).
Pipe fittings size of malleable pipe fittings from 1/8 "to 8".
The Attribute definition list
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
Dim.
(mm) | A | 19 | 21 | 25 | 28 | 33 | 38 | 45 | 50 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | | |
Dim.
(mm) | A | 50 | 69 | 78 | 96 | 115 | 1301 | | |
| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 |
Dim.
(mm) | A | 23 | 26 | 26 | 28 | 30 |
| | B | 23 | 26 | 26 | 28 | 31 |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 |
Dim.
(mm) | A | 32 | 35 | 34 | 36 | 40 |
| | B | 34 | 36 | 38 | 41 | 42 |
| Size | Inch | 11/2X1/2 | 11/2x3/4 | 11/2x1 | 11/2x11/4 | 2x1/2 |
| mm | 40X15 | 15X8 | 40X25 | 40X32 | 50X15 |
Dim.
(mm) | A | 36 | 39 | 42 | 46 | 38 |
| | B | 42 | 44 | 46 | 28 | 48 |
| Size | Inch | 2x3/4 | 2x1 | 2x11/4 | 2x11/2 | 21/2x1 |
| mm | 50X20 | 50X25 | 50X32 | 50X40 | 65x25 |
Dim.
(mm) | A | 40 | 44 | 56 | 52 | 56 |
| | B | 50 | 52 | 58 | 55 | 63 |
| Size | Inch | 21/2X11/2 | 3x21/2 | 21/2x2 | 3x11/2 |
| mm | 65X40 | 80X65 | 65X50 | 80X40 |
Dim.
(mm) | A | 64 | 82 | 61 | 58 |
| | B | 69 | 85 | 66 | 72 |
| Size | Inch | 3x2 | 4x21/2 | 4X3 | |
| mm | 80X50 | 100X65 | 100X80 | |
Dim.
(mm) | A | 73 | 78 | 84 | |
| | B | 78 | 90 | 92 | |
Material: iron
Technics: Casting
Type: galvanized cast iron pipe fittings
- Shape: Equal
- Usage: Jointing Pipe Lines
- Thread: ISO 7/1
- Standard: ANSI,BS,DIN,EN
- Surface treatment: Hot Dipped Galvanized
- Size: 1/8"~4"
- Type: galvanized cast iron pipe fittings
Product Tags:
|
|

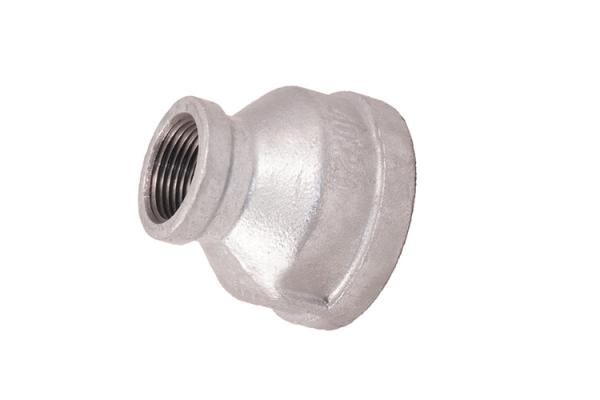

Galvanized 3 Inch En 10242 Sanitary Pipe Fittings Images
|
