Cast iron cap Baked galvanized cap Malleable Iron Pipe Fittings
Durable series of pipe fittings
Our range of pipe fittings includes malleable iron pipe fitting,
grooved pipe fitting and plastic lining pipe fitting, etc.
They are designed for fire protection, gas supply and water supply
even in other difficult areas to access.
Our series of pipe fittings are designed for fire protection,
gas supply and water supply even in other difficult areas to access.
Production and packaging process
Steps: The melting-casing- MAO embryo-Polishing-Galvanized-Threading-Detection-Packaging
Blast-furnace smelting +electric furnace adjustment duplex smelting technology,
72 hours-3 sections-electric annealing technology, comprehensively
ensure our products’ quality to be the best.
Take”six check +two inspect+one examine” measures,
using Germany made FOUNDRY-MASTER Xline to check each pack of liquid iron’s chemical composition, ensure low defect rate and stable product quality.
Carefully choose multiple vendors, using Shanghai-made 99.99 high purity zinc,
remove all the impurities which is bad product quality control,
brighter surface, more fine zinc coat, better protective properties.
Small packaging numbers, which is easier for handle; carefully choose
high quality non-recycled plastic made double-woven bag,
make the product to be more break-resistant,
no need worry about broken bag during handing process.

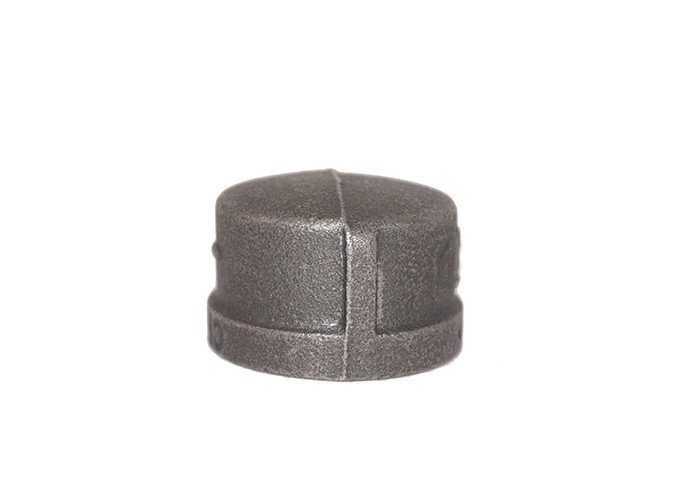

Details for pipe fitting cap
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
| Delivery details
| According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
