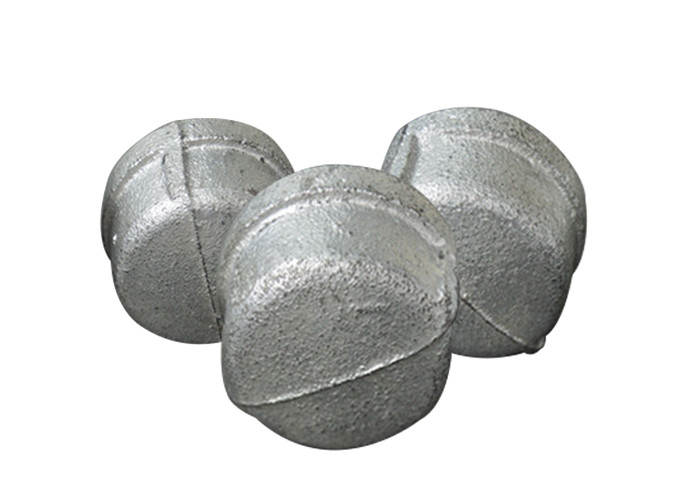

BS, NPT, DIN Standards Malleable cast iron threaded round caps
Short description of pipe fitting cap
We supply high quality malleable iron pipe fittings
One of the most professional leaders for malleable iron pipe fitting in China
Main features of malleable iron cap in the follows;
Deep thread, durable, eco-friendly, strong pressure resistance and good toughness.
About Pipe Fitting
Pipe fittings is for installing or repairing piping or tubing systems that
includes Elbow degree 90, Street Elbow, Red Elbow, Elbow degree 45,
Street Elbow degree 45, V Type Tee, Tee, Cross, Hex Nipple,
Socket M/F, Red. Hex Nipple, Square Plug, Socket Banded,
Hex Cap, Red. Socket Banded, Round Cap, Hex Back Nut,
Hex Bushing, Union Conical F/F, Union Teflon Flat F/F,
Union Conical BW/BW, Union Teflon Flat BW/BW,
Union Conical M/F, Union Teflon Flat M/F, Union Conical M/M,
Union Teflon Flat M/M, Coupling, Half Coupling, Hex Hose Nipple,
Hex Plug, Male Hose Nipple, Double Hose Nipple,
BW Hose Nipple, Welding Nipple, Flex Union,
Barrel Nipple, JIS Union, Female Hex Hose Nipple,
Special Union, Parrel Nipple, and Special Union, and so on.
Size for pipe fitting cap
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
| Delivery details
| According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
