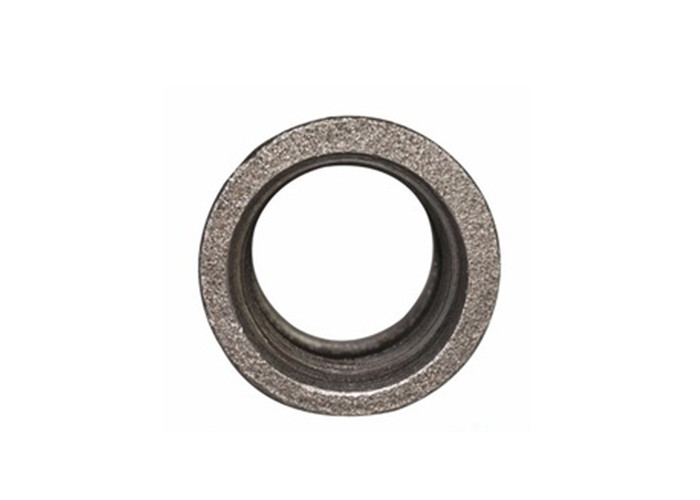

Hot Galvanized Iron Pipe Fitting Socket Weld Coupling Long Using Life

  • 1
  • 2
  • 3

Brand Name : kanaif

Model Number : galvanized iron extension socket

Certification : FM/UL

Place of Origin : China

MOQ : 100piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

Color : Galvanized & black

Meterial : Malleable iron

Physical property : Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB

Size : 1/8"6“

Standard : ANSI,BS,DIN

Working pressure : 1.6Mpa

Surface treatment : Hot Galvanized

Type : galvanized iron extension socket

Contact Now

Attribute list of malleable iron pipe fittings socket

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 24.2 26.9 29.5 34.0 38.6 42.4 49.0
Size Inch 11/2 2 21/2 3 4 5 6
mm 40 50 65 80 100 125 150
Dim.
(mm)		 A 54.6 64.3 73.2 80.8 93.7 95 105

Online Shopping Galvanized Iron Extension Socket Welding Swage With Best Quality

  1. Good toughness and long using life.
  2. Smooth surface without any sand hole.
  3. The layer of zinc exceeds the standard of ASME, EN, and BS, DIN and so on .
  4. In order to ensure the quality of socket, we introduced the full automatic produce-lines from DISA Denmark, DJ and SINTOKOGIO Japan.
  5. The spectrometer of Oxford Instruments has applied to test the quality of socket .

  6. We rely on higher heating value gas annealing furnace to import the physical characteristics of galvanized iron extension socket.

  7. Thread diameter, parallelism, angle, tooth type, every part on thread will be regulated strictly .even each galvanized iron extension socket must be sorted by plug gauge.

Chart :

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

A&Q

A: How does it test ?

B: Gas leakage test for will be done.

A: What's the outlet dimension ?

Q: Outlet size is from 1/8”~6”.
